Technical details
- Side mounting
- Horizontal mounting with reduced load capacity (-75%)
- High-gloss galvanized surface (chromated appearance)
- Material: Cold-formed steel
- Installation length 1016 mm
- Extension length 1016 mm
- Load capacity for side mounting 210 kg / pair
- recommended max. drawer width 120 cm
- extremely quiet, as stops are fitted with buffers
- Self-cleaning
- Weight: 10.40 kg
Areas of application
- Fire engines
- Municipal vehicles
- Surveying vehicles
- Technical police vehicles
- Technical relief organization vehicles
- Mechanical engineering
- Storage technology
- Expedition vehicles
- Furniture construction
- etc.
This pull-out replaces the pull-out with article no. TS 2207719-1016

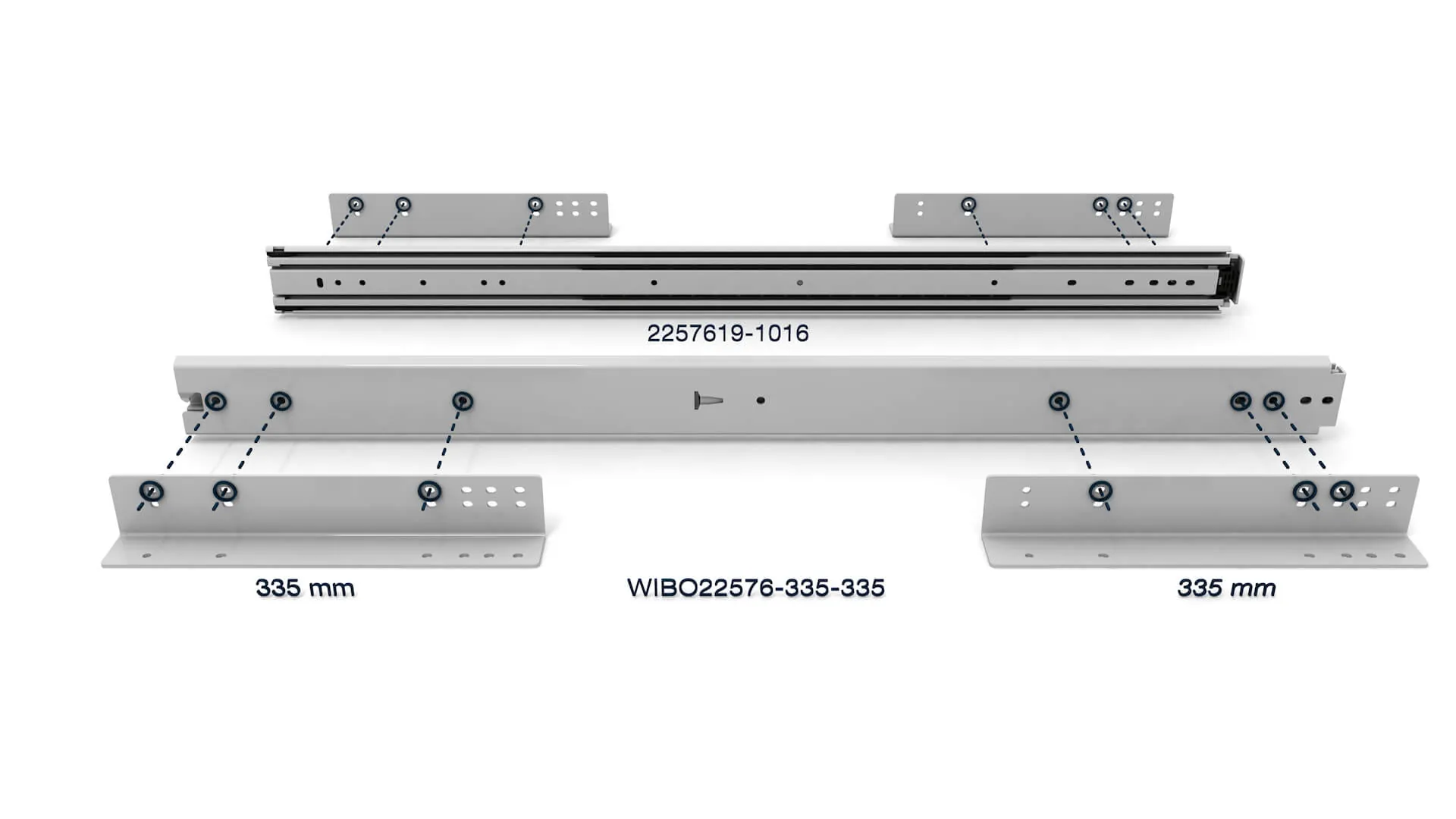

Floor mountingScrew fitting positions Heavy duty pull-out 2257619-1016 without locking with mounting bracket for floor mounting
Floor mounting WIBO 22576-335-335
Variant 1: Leg sides of the mounting brackets point outwards
Download PDF drawing
Floor mountingScrew fitting positions heavy duty pull-out 2257619-1016 without locking with mounting bracket for
Floor mounting WIBO 22576-335-335
Variant 2: Leg sides of the mounting brackets point inwards
Download PDF drawing

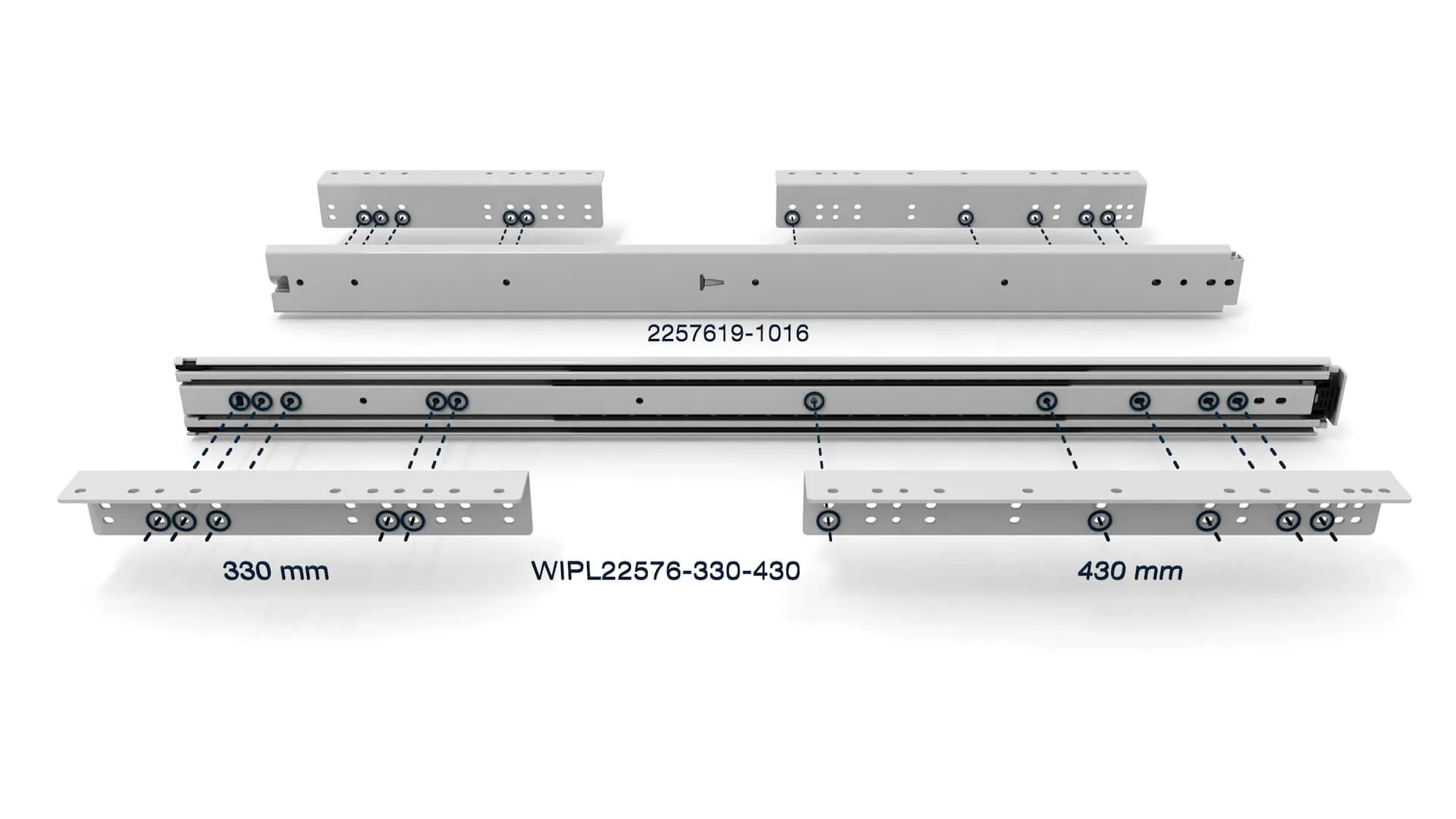

Platform mountingScrew fitting positions heavy duty pull-out 2257619-1016 without locking with mounting bracket for
Platform mounting WIPL 22576-330-430
Variant 1: Leg sides of the mounting brackets point upwards
Download PDF drawing

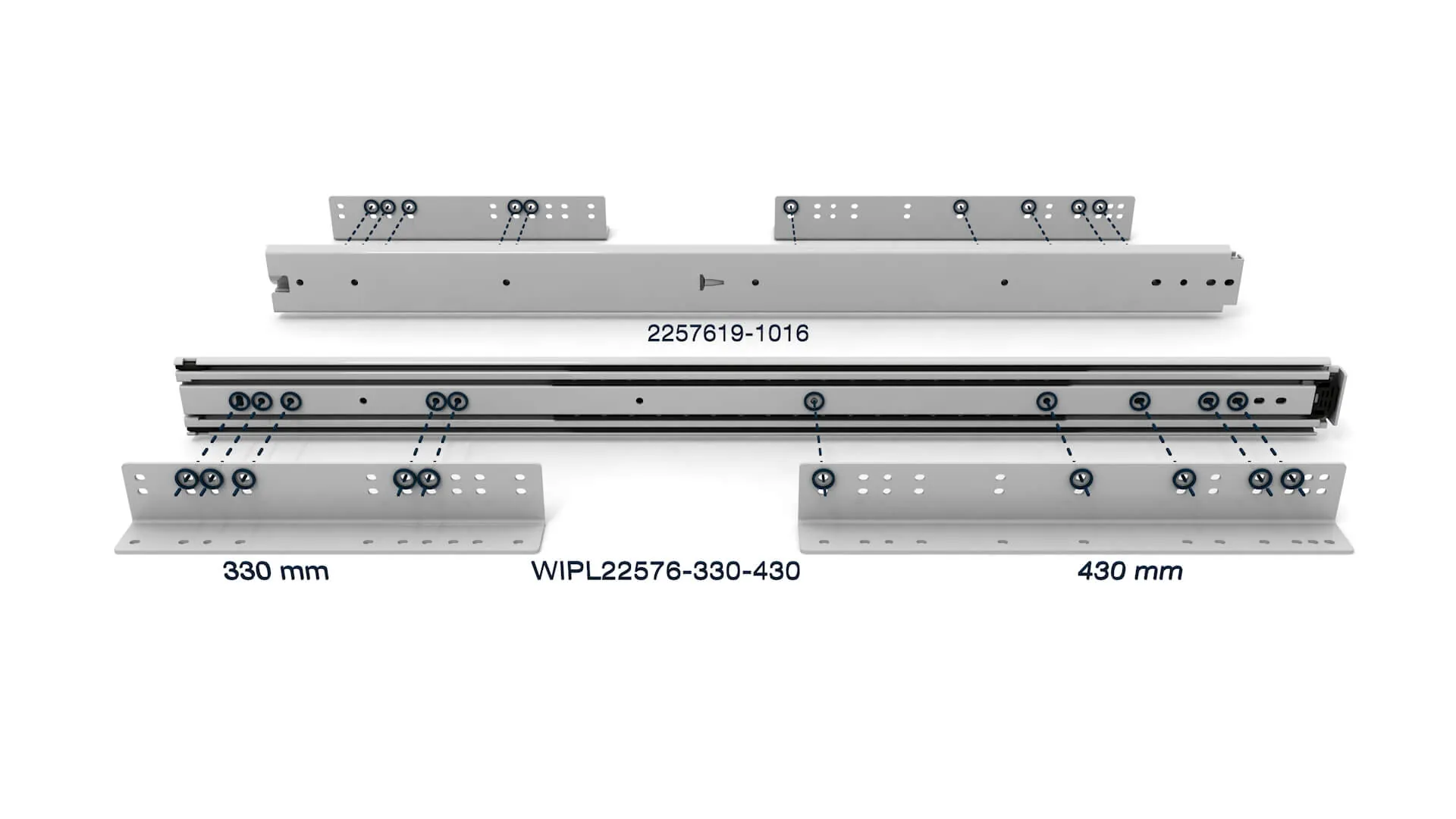

Platform assemblyScrew fitting positions heavy duty pull-out 2257619-1016 without locking with mounting bracket for
Platform mounting WIPL 22576-330-430
Variant 2: Leg sides of the mounting brackets point downwards
Download PDF drawing
Weitere verfügbare Längen:
