Category: Floor mounting bracket for slides from 220kg

Mounting bracket set WIBO 22576-535

SKU: WIBO 22576-535
GTIN: 4251266901815

Mounting bracket set for floor mounting only suitable for the listed pull-out types 2257619-609 & 2257619-609lock

Assembly video CAD data Drawing

€ 20,00

incl. 21% VAT , plus

Available immediately
Delivery time: 3 - 7 Workdays (BE - int. shipments may differ)

Set

Convenient payment by:

Angle set for floor mounting suitable for the listed pull-out types

2257619-609

2257619-609lock

Scope of delivery:

2 brackets 535mm
Screw set for fastening the brackets to the pull-outs - hexagon socket M6 x 12 DIN6912

Mounting options for floor mounting

Item weight:	2,40 kg
Manufacturer information:	Multislides GmbH Robin Stoof Sachsstrasse 16 50259 Pulheim-Brauweiler Phone: +49 (0) 2234 - 68 83 611 Telefax: +49 (0) 2234 - 68 83 612 www.teleskopschienen24.de info@teleskopschienen24.de

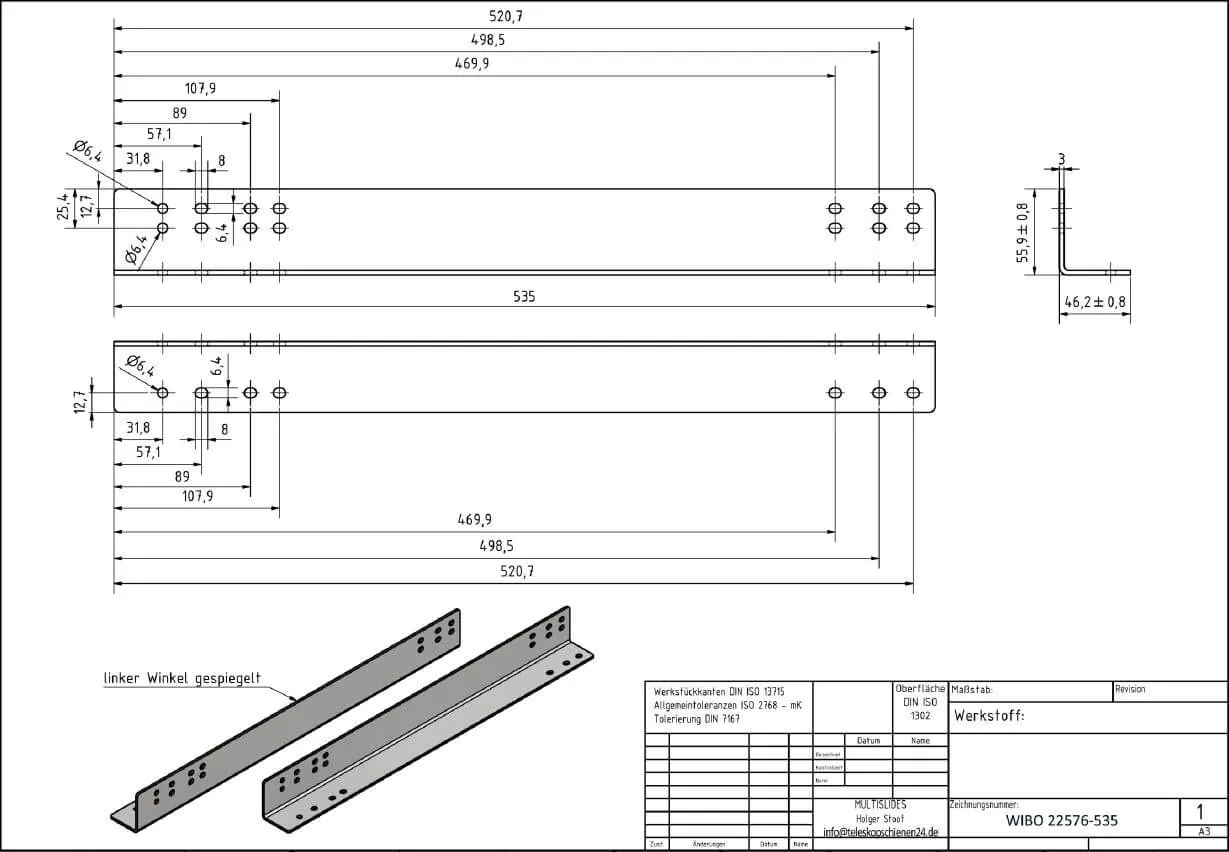

Download PDF-Zeichnung Montagewinkel WIBO 22576-535

Download Montageanleitung Montagewinkel für Bodenmontage 2257619 mit und ohne Verriegelung

Download CAD-STEP format

Download CAD-IGES format
