Technical details
- Side mounting
- Horizontal mounting with reduced load capacity (-75%)
- High-gloss galvanized surface (chromated appearance)
- Material: Cold-formed steel
- Installation length 1524 mm
- Extension length 1422 mm
- Load capacity for side mounting 180 kg / pair
- recommended max. drawer width 150 cm
- extremely quiet, as stops are fitted with buffers
- Self-cleaning
- Weight: 15.50 kg
Areas of application
- Fire engines
- Municipal vehicles
- Surveying vehicles
- Technical police vehicles
- Technical relief organization vehicles
- Mechanical engineering
- Storage technology
- Expedition vehicles
- Furniture construction
- etc.
This pull-out replaces the pull-out with article no. TS 2207719-1524
Floor mounting and platform mounting

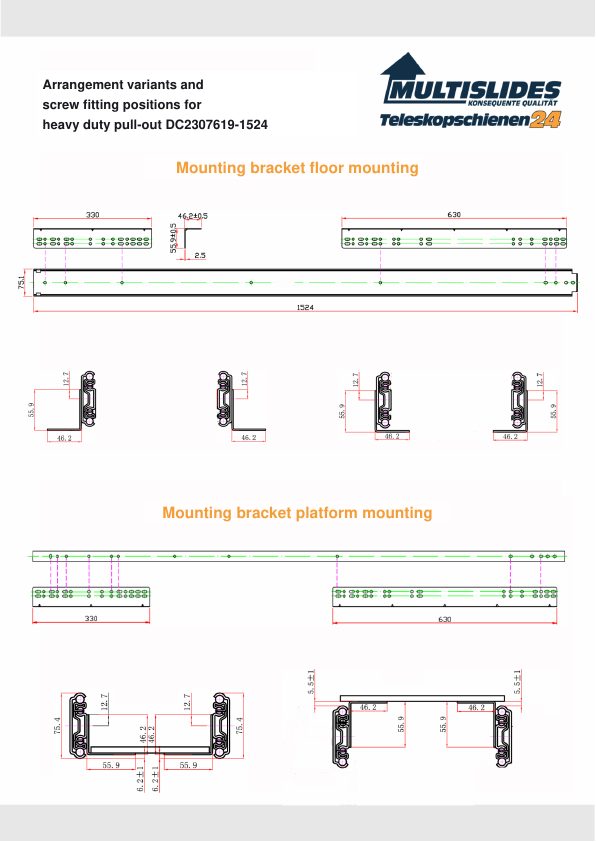

Screw fitting positions of the mounting brackets on the heavy duty pull-out DC2307619-1524
For floor mounting, bracket set WIBO 23076-330-630 can be installed with the leg sides facing outwards or inwards
For platform mounting, angle set WIPL 23076-330-630 can be mounted with the leg sides facing upwards or downwards.

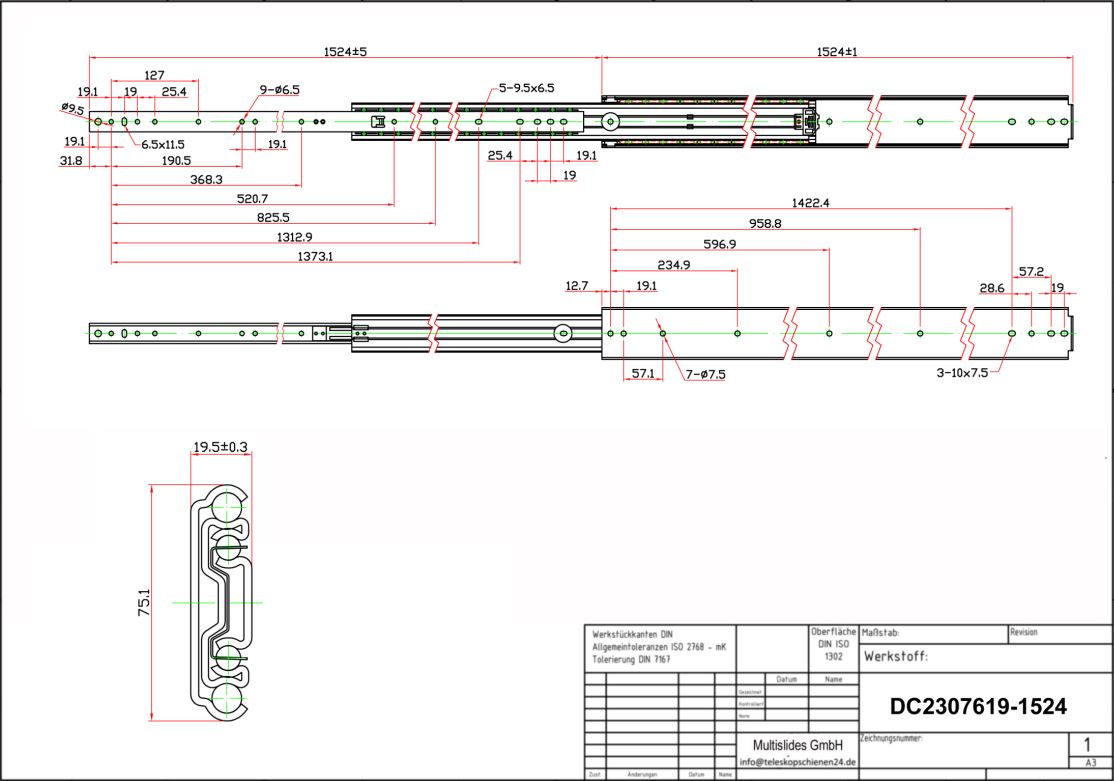

Download PDF drawing
