Heavy-duty drawer slide DC2307619-1829mm

Scope of delivery:

• 2 angles 330mm
• 2 brackets 730mm
• Screw set for fastening the brackets to the pull-outs - hexagon socket M6 x 12 DIN6912

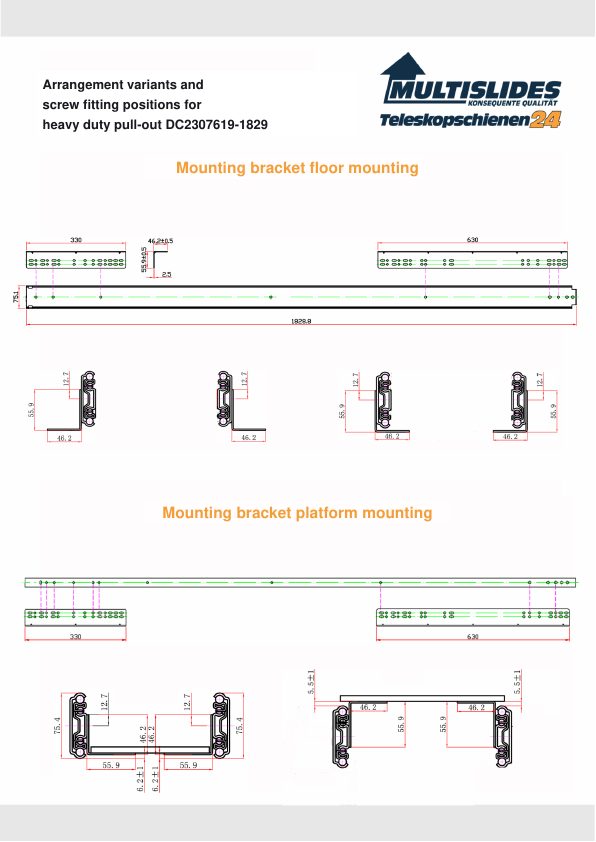

Mounting options for platform mounting

PLEASE BE SURE TO WATCH THE INSTALLATION VIDEO AND READ THE INSTALLATION INSTRUCTIONS

This screw set is the perfect mounting option for wooden structures for our pull-outs with item numbers 2257619(-lock), DC2307619, DCL2307619 and BL-DCL2307619

Technical details:

• Head type: Flat head
• Material: Galvanised steel
• Diameter: 6 mm
• Area of application: Wood
• Length: 16 mm
• Scope of delivery: 50 screws

• Fits the following articles:
• Heavy duty pull-outs up to 220kg with and without locking mechanism
• Black Heavy Duty Drawer up to 225kg with locking mechanism
• Bracket for floor and platform mounting 22576

PLEASE BE SURE TO WATCH THE INSTALLATION VIDEO AND READ THE INSTALLATION INSTRUCTIONS

This screw set is the perfect mounting option for wooden structures for our pull-outs with item numbers 2257619(-lock), DC2307619, DCL2307619 and BL-DCL2307619

Technical details:

• Head type: Flat head
• Material: Galvanised steel
• Diameter: 6 mm
• Area of application: Wood
• Length: 24 mm
• Scope of delivery: 50 screws

• Fits the following articles:
• Heavy duty pull-outs up to 220kg with and without locking mechanism
• Black Heavy Duty Drawer up to 225kg with locking mechanism
• Bracket for floor and platform mounting 22576

BE SURE TO FOLLOW THE ASSEMBLY VIDEO AND ASSEMBLY INSTRUCTIONS

This screw set is the perfect mounting option for our pull-outs with item number 2257619

Technical details:

• Head type: Flat head
• Material: Galvanized steel
• Diameter: M6
• Area of application: Aluminum profile
• Length: 16mm
• Scope of delivery: 50 screws

• Fits the following articles:
• Heavy duty pull-outs up to 220kg with and without locking mechanism
• Black Heavy Duty Drawer up to 225kg with locking mechanism
• Bracket for floor and platform mounting 22576

BE SURE TO FOLLOW THE ASSEMBLY VIDEO AND ASSEMBLY INSTRUCTIONS

This screw set is the perfect mounting option for our pull-outs with item number 2257619

Technical details:

• Head type: Flat head
• Material: Galvanized steel
• Diameter: M6
• Area of application: Aluminum profile
• Length: 24mm
• Scope of delivery: 50 screws

• Fits the following articles:
• Heavy duty pull-outs up to 220kg with and without locking mechanism
• Black Heavy Duty Drawer up to 225kg with locking mechanism
• Bracket for floor and platform mounting 22576
