Schwerlastauszug DCL2307619-711mm mit Verriegelung

Category: Heavy-duty drawer slide up to 225 kg with locking mechanism

Heavy-duty drawer slide DCL2307619-711mm with locking mechanism

SKU: DCL2307619-711
GTIN: 4251266901075

Heavy duty pull-out DCL2307619-711mm with locking mechanism
Pull-out is locked when retracted and extended.

Assembly video CAD data Drawing

from

€ 135,00

incl. 21% VAT , plus

Available immediately
Delivery time: 3 - 7 Workdays (BE - int. shipments may differ)

Pair

Convenient payment by:

Order matching accessories at the same time

Optional accessories

Mounting bracket set WIBO 23076-630

More info

Angle set f&uuml To the article

+€ 22,00

Optional accessories

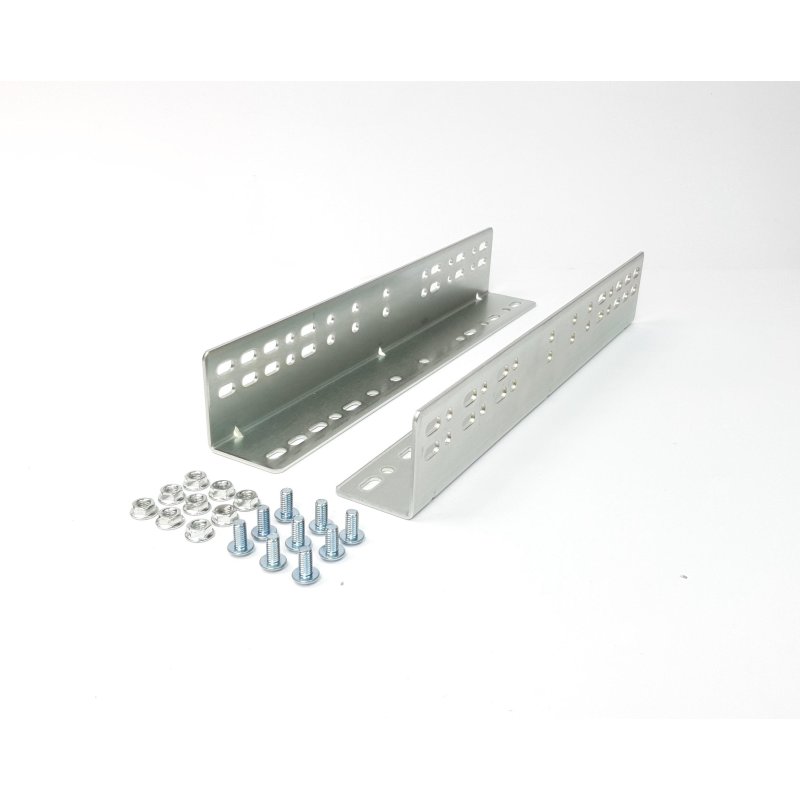

Mounting bracket set WIPL 22576-630

More info

Angle set for platform mounting suitable for the listed pull-out types

2257619-711	2257619-711lock

Scope of delivery:

2 brackets 630mm
Screw set for fastening the brackets to the pull-outs - hexagon socket M6 x 12 DIN6912

Mounting options for platform mounting

To the article

+€ 22,00

Optional accessories

Our gray one-hand latch in a max. width of up to 1150mm. It can be adjusted to the length you require.

One-hand locking mechanism 500mm GREY +€ 18,50

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

One-hand lock for drawer width up to 500mm GREY

To the article

One-hand locking mechanism 700mm GREY +€ 19,00

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

Gray one-hand lock for convenient opening and closing with one hand in 700mm width

To the article

One-hand locking mechanism 1000mm GREY +€ 20,50

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

Gray one-hand lock for convenient opening and closing with one hand in 1000mm width

To the article

One-hand locking mechanisming 1150mm GREY +€ 21,50

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

Gray one-hand lock for convenient opening and closing with one hand in 1150mm width

To the article

Optional accessories

Our black one-hand locking system with a maximum width of 1150 mm. It can be adjusted to the length you require.

One-hand locking mechanism 500mm BLACK +€ 20,00

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

One-hand lock for drawer width up to 500mm BLACK

To the article

One-hand locking mechanism 700mm BLACK +€ 20,50

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

Black one-hand lock for convenient opening and closing with one hand in 700mm width

To the article

One-hand locking mechanism 1000mm BLACK +€ 22,00

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

Black one-hand lock for convenient opening and closing with one hand in 1000mm width

To the article

One-hand locking mechanism 1150mm BLACK +€ 23,00

ATTENTION: Only for items 1305319lock & 1705819lock & DCL2307619

Black one-hand lock for convenient opening and closing with one hand in 1150mm width

To the article

Optional accessories

Your wood screw set for fastening your pull-out directly to wooden structures.

Wood screw set 6mm x 16

More info

PLEASE BE SURE TO WATCH THE INSTALLATION VIDEO AND READ THE INSTALLATION INSTRUCTIONS

This screw set is the perfect mounting option for wooden structures for our pull-outs with item numbers 2257619(-lock), DC2307619, DCL2307619 and BL-DCL2307619

Technical details:

Head type: Flat head
Material: Galvanised steel
Diameter: 6 mm
Area of application: Wood
Length: 16 mm
Scope of delivery: 50 screws

Fits the following articles:
Heavy duty pull-outs up to 220kg with and without locking mechanism
Black Heavy Duty Drawer up to 225kg with locking mechanism
Bracket for floor and platform mounting 22576

To the article

+€ 5,99

Wood screw set 6mm x 24

More info

Head type: Flat head
Material: Galvanised steel
Diameter: 6 mm
Area of application: Wood
Length: 24 mm
Scope of delivery: 50 screws

Fits the following articles:
Heavy duty pull-outs up to 220kg with and without locking mechanism
Black Heavy Duty Drawer up to 225kg with locking mechanism
Bracket for floor and platform mounting 22576

To the article

+€ 5,99

Optional accessories

Your M6 screw set for attaching your pull-out to the aluminum profile, for example

Screw set M6 x 16mm

More info

BE SURE TO FOLLOW THE ASSEMBLY VIDEO AND ASSEMBLY INSTRUCTIONS

This screw set is the perfect mounting option for our pull-outs with item number 2257619

Technical details:

Head type: Flat head
Material: Galvanized steel
Diameter: M6
Area of application: Aluminum profile
Length: 16mm
Scope of delivery: 50 screws

Fits the following articles:

Heavy duty pull-outs up to 220kg with and without locking mechanism

Black Heavy Duty Drawer up to 225kg with locking mechanism

Bracket for floor and platform mounting 22576

To the article

+€ 5,99

Screw set M6 x 24mm

More info

BE SURE TO FOLLOW THE ASSEMBLY VIDEO AND ASSEMBLY INSTRUCTIONS

This screw set is the perfect mounting option for our pull-outs with item number 2257619

Technical details:

Head type: Flat head
Material: Galvanized steel
Diameter: M6
Area of application: Aluminum profile
Length: 24mm
Scope of delivery: 50 screws

Fits the following articles:
Heavy duty pull-outs up to 220kg with and without locking mechanism
Black Heavy Duty Drawer up to 225kg with locking mechanism
Bracket for floor and platform mounting 22576

To the article

+€ 5,99

Summary

incl. 21% VAT , plus shipping costs

Pair

Technical details

Side mounting
High-gloss galvanized surface (chromated appearance)
Material: Cold-formed steel
Installation length 711 mm plus 27 mm release lever
Extension length 711 mm
Load capacity for side mounting 225 kg / pair
Locking in retracted position & in extended position
recommended max. drawer width 100 cm
extremely quiet, as stops are fitted with buffers
Self-cleaning
Weight: 7.30 kg

Areas of application

Fire engines
Municipal vehicles
Surveying vehicles
Technical police vehicles
Technical relief organization vehicles
Mechanical engineering
Storage technology
Expedition vehicles
Furniture construction
etc.

This pull-out replaces the pull-out with article no. TS 2207719-711 mV and 2257619-711lock

Item weight:	7,30 kg
Manufacturer information:	Multislides GmbH Robin Stoof Sachsstrasse 16 50259 Pulheim-Brauweiler Phone: +49 (0) 2234 - 68 83 611 Telefax: +49 (0) 2234 - 68 83 612 www.teleskopschienen24.de info@teleskopschienen24.de

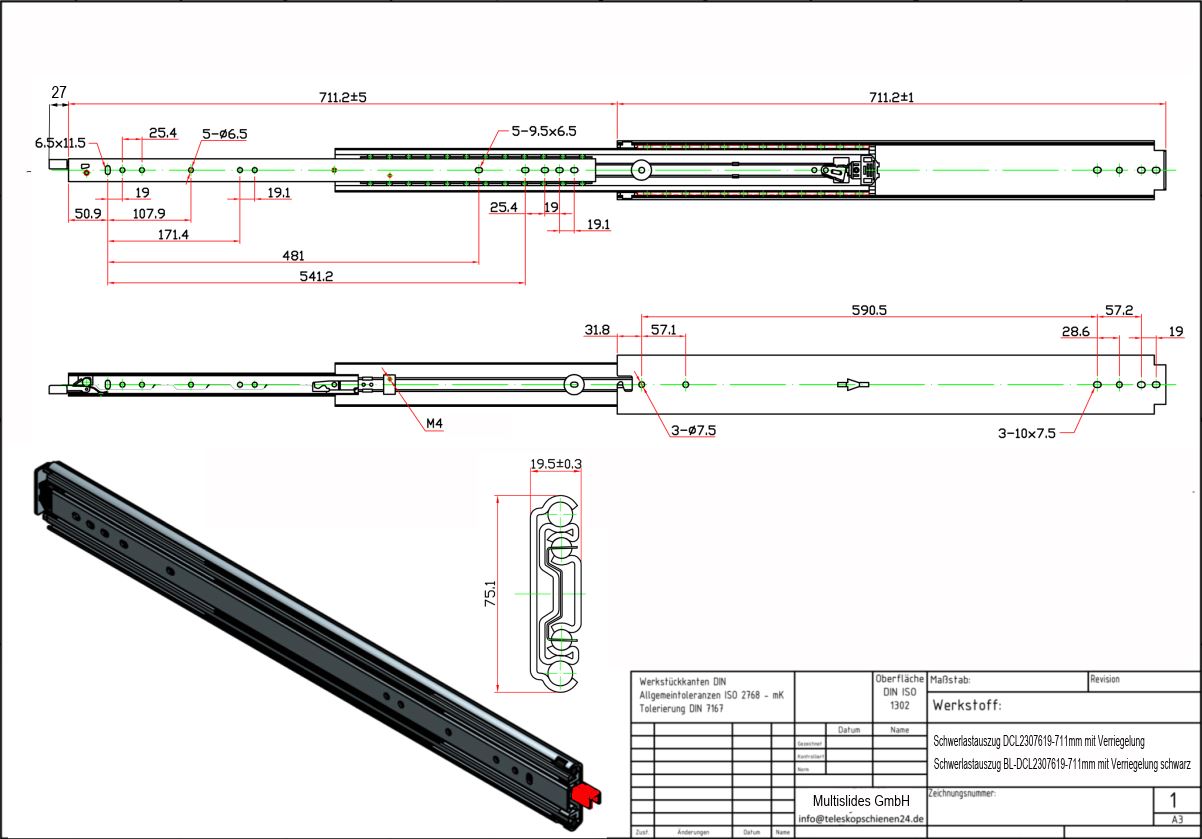

Download PDF drawing

Download PDF assembly instructions DCL2307619-711

Download CAD-STEP-Format

Bodenmontage und Plattformmontage
Verschraubungspositionen der Montagewinkel am Schwerlastauszug DCL2307619-711 mit Verriegelung
Bei der Bodenmontage kann Winkelset WIBO 23076-330-630 mit den Schenkelseiten nach außen oder innen gerichtet sein
Bei der Plattformmontage kann Winkelset WIPL 23076-330-630 mit den Schenkelseiten nach oben oder unten gerichtet sein.

Download PDF-Zeichnung
