The pull-out has a hold-in and hold-out device when extended, fully closed and half-opened
A force of approx. 30 N is required to close the drawer.

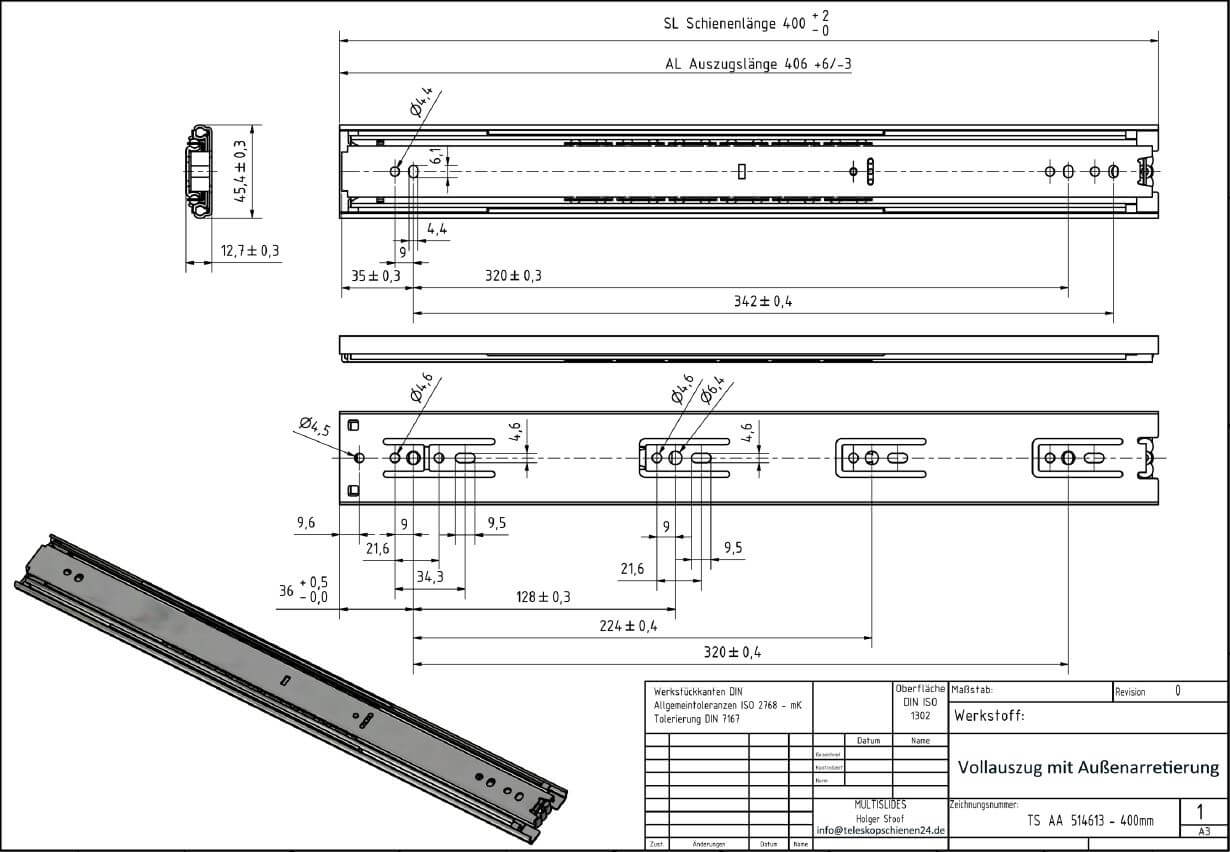

Technical details:
- Telescopic pull-out with locking mechanism
- Pull-out locks when half-opened and fully extended
- Force of approx. 30 N required to close the drawer
- Retainer (drawer is held shut when closed)
- High-gloss galvanized (chromated surface)
- Material: Cold-formed steel
- Installation length 400 mm
- Extension length 400 mm
- Load capacity for side mounting 42 kg / pair
- Easy removal of the drawer thanks to quick-release mechanism
- Hole pattern 32 mm
- Weight: 1.18 kg
Areas of application:
- Furniture construction
- Mechanical engineering
- Motorhome & caravan construction
- Special vehicle construction
- Machine construction
- Warehouse equipment construction
- etc.
| Item weight: |
1,15 kg
|
| tab7 content: |
Other available lengths:
|
| Manufacturer information: |
Multislides GmbH
Robin Stoof
Sachsstrasse 16
50259 Pulheim-Brauweiler
Phone: +49 (0) 2234 - 68 83 611
Telefax: +49 (0) 2234 - 68 83 612
www.teleskopschienen24.de
